HS Tipi aksesuarları 1 » MurrPlastik Kablo Koruma Spiralleri

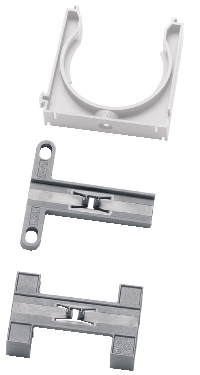

HS/F -> Sabitleme ayağı (UHF olarak). HS/U tutucuya basitce sabitleme ayağı takılabilir.
HS/C -> C rayına sabitleme parçası (UHF olarak). Basit bir montajla C rayına takılabilir.

      Esnek sistem
      Ýstiflenebilir
      Sıralı kullanılabilir
      Tek gövdeli, UH, UHF ve USH ile uyumlu.

RoHS uyumlu

-40-110 ℃ – 140 ℃

Mod. poliamid PA 6

DB yetkilendirmesi

BS-onaylı

Tip	Sipariş No.	Renk	Fits in holder	A mm	B mm	C mm	D mm	E mm	F Ø mm	H mm	J mm	K mm	L mm	Paket Miktarı adet
Ayak, tip UHF
HS/F 07-09	83631650	siyah	HS/U 07-09	22.0	5.0	2.5	18.0	41.0	6.0	28.0	–	–	–	100
HS/F 11-16	83631652	siyah	HS/U 11-16	28.0	5.0	2.5	18.0	41.0	6.0	28.0	–	–	–	100
HS/F 21-29	83631654	siyah	HS/U 21-29	43.0	5.0	2.5	18.0	41.0	6.0	28.0	–	–	–	50
HS/F 36-49	83631656	siyah	HS/U 36-48	63.0	5.0	2.5	18.0	60.0	6.0	47.0	–	–	–	50

HS/F 07-09	83631610	gri	HS/U 07-09	22.0	5.0	2.5	18.0	41.0	6.0	28.0	–	–	–	100
HS/F 11-16	83631612	gri	HS/U 11-16	28.0	5.0	2.5	18.0	41.0	6.0	28.0	–	–	–	100
HS/F 21-29	83631614	gri	HS/U 21-29	43.0	5.0	2.5	18.0	41.0	6.0	28.0	–	–	–	50
HS/F 36-49	83631616	gri	HS/U 36-48	63.0	5.0	2.5	18.0	60.0	6.0	47.0	–	–	–	50

Ayak, tip KAF
HS/C 07-09	83631850	siyah	HS/U 07-09	22.0	16.5	10.7	39.5	–	–	–	9.5	13.6	12.3	100
HS/C 11-16	83631852	siyah	HS/U 11-16	28.0	16.5	10.7	39.5	–	–	–	9.5	13.6	12.3	100
HS/C 21-29	83631854	siyah	HS/U 21-29	43.0	16.5	10.7	39.5	–	–	–	9.5	13.6	12.3	50
HS/C 36-49	83631856	siyah	HS/U 36-48	63.0	16.5	10.7	39.5	–	–	–	9.5	13.6	12.3	50

HS/C 07-09	83631810	gri	HS/U 07-09	22.0	16.5	10.7	39.5	–	–	–	9.5	13.6	12.3	100
HS/C 11-16	83631812	gri	HS/U 11-16	28.0	16.5	10.7	39.5	–	–	–	9.5	13.6	12.3	100
HS/C 21-29	83631814	gri	HS/U 21-29	43.0	16.5	10.7	39.5	–	–	–	9.5	13.6	12.3	50
HS/C 36-49	83631816	gri	HS/U 36-48	63.0	16.5	10.7	39.5	–	–	–	9.5	13.6	12.3	50

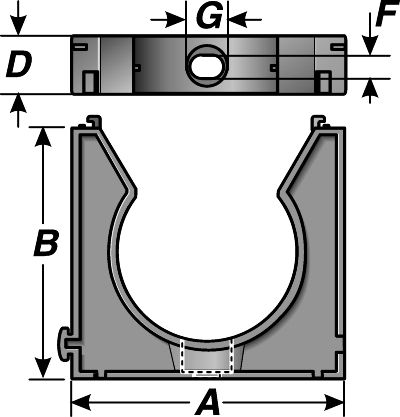

Ölçekli çizim:
